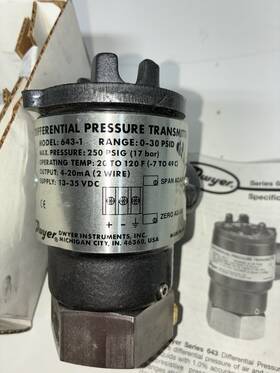

DWYER Differential Pressure Transmitter Psid Nos 643-1 0-30

( Brand: Dwyer ), ( Part Type: Pressure Instrument ), ( Connection Diameter: 1/4 In ), ( Mounting Position: Veritical Orienation ), ( Maximum Pressure: 250 Psi ), ( UPC: 643133052501 )

Review DWYER Instruments Differential Pressure Transmitter 0-30 Psid Nib Nos

The **Dwyer Instruments 643-1 33052501 Differential Pressure Transmitter (0-30 psid)** is a high-performance, precision-engineered device designed to provide reliable and accurate measurement of differential pressure in a wide range of industrial and commercial applications. Part of Dwyer s trusted 643 series, this transmitter combines robust construction with advanced electronic sensing technology to deliver consistent performance in demanding environments. Built with a **316 stainless steel diaphragm assembly**, the 643-1 ensures corrosion resistance and durability, making it ideal for use in corrosive fluids, chemical processing, HVAC systems, and pneumatic control applications where accuracy and longevity are critical. The transmitter operates on a **0-30 psid (pounds per square inch differential) range**, offering a compact yet versatile solution for monitoring pressure differentials in systems such as air filtration, ventilation, fluid transfer, and process control.

Featuring a **4-20 mA analog output**, the 643-1 provides a standardized signal that is easily integrated with PLCs, DCS systems, or other control instrumentation, enabling seamless data logging and automation. Its **hermetically sealed electronics** protect against environmental contaminants, ensuring long-term reliability in harsh conditions, while the **low-profile, NEMA 4X-rated enclosure** allows for easy installation in tight spaces. The transmitter s **zero and span adjustments** enable precise calibration, allowing users to fine-tune readings for optimal accuracy across varying operating conditions. Additionally, the **wide operating temperature range** (from -40 F to 185 F) ensures consistent performance in both cold and high-temperature environments, further enhancing its adaptability for diverse applications.

Whether deployed in industrial manufacturing, laboratory settings, or critical infrastructure monitoring, the Dwyer 643-1 33052501 differential pressure transmitter delivers **superior precision, durability, and ease of use**. Its **modular design** allows for quick replacement of components, reducing downtime and maintenance costs, while its **low-power consumption** makes it energy-efficient for continuous operation. With a reputation for reliability and a proven track record in pressure measurement, this transmitter is an excellent choice for engineers and technicians seeking a dependable, high-performance solution for differential pressure monitoring.

### **Pros and Cons of buying a Dwyer 643-1 33052501 Differential Pressure Transmitter (0-30 psid)**

1. **Reliability and Durability** Dwyer is a well-established brand in industrial instrumentation, known for producing robust and long-lasting pressure transmitters. This model is designed for harsh environments, making it suitable for applications in HVAC, process control, and filtration systems.

2. **Accurate and Stable Readings** The transmitter is calibrated for precise differential pressure measurement within its specified range (0-30 psid). It provides consistent performance over time, reducing the need for frequent recalibration.

- Air filtration (HEPA, pleated filters)

- HVAC ductwork and airflow measurement

- Process control (e.g., fluid flow, level detection)

- Compressed air and gas systems

4. **Easy Installation and Integration** The unit is designed for straightforward mounting on pipes or ductwork. It typically includes standard electrical connections (e.g., 4-20 mA output) that work with most industrial control systems, PLCs, or data loggers.

5. **Low Maintenance Requirements** Unlike mechanical gauges, this electronic transmitter eliminates the need for frequent visual checks or manual adjustments. It operates with minimal upkeep, reducing downtime.

6. **Cost-Effective for Mid-Range Applications** While not the cheapest option, it offers a balance between price and performance for applications where 0-30 psid is sufficient. It avoids the need for more expensive high-precision or high-range transmitters.

7. **Compatibility with Accessories** Dwyer offers compatible mounting kits, enclosures, and signal conditioners, making it easier to customize the setup for specific needs.

8. **Industry Standards Compliance** The transmitter adheres to common industrial standards (e.g., NEMA 4X for some models), ensuring reliability in controlled environments.

---

1. **Limited Range for High-Pressure Applications** The 0-30 psid range is narrow for systems requiring higher differential pressures (e.g., above 50 psid). If your application demands a broader range, you may need a different model or an additional range adapter.

2. **Potential Calibration Drift Over Time** While generally reliable, electronic transmitters can experience slight drift in accuracy due to environmental factors (temperature, humidity, or electrical noise). Regular calibration may be necessary for critical applications.

3. **Dependence on Power Supply** The transmitter requires an external power source (e.g., 24V DC) for operation. If power fails, the output signal may drop to zero, requiring backup power solutions in some cases.

4. **Limited Built-In Diagnostics** Unlike some advanced transmitters, this model may lack built-in self-diagnostic features (e.g., fault codes or remote monitoring). Troubleshooting could require additional tools or expertise.

5. **Physical Size and Mounting Constraints** The transmitter s size may not fit in tight or confined spaces, requiring custom mounting solutions or adapters.

6. **Potential Signal Noise in Harsh Environments** In highly vibrating or electrically noisy environments, the 4-20 mA output signal could be susceptible to interference, requiring shielding or filtering.

7. **Replacement Parts Availability** While Dwyer is reliable, finding replacement parts or support may be more challenging than with larger, more widely distributed brands in some regions.

8. **No Built-In Wireless or Digital Communication** The standard model does not support wireless (e.g., Bluetooth, Wi-Fi) or advanced digital protocols (e.g., Modbus RTU over Ethernet). For smart systems, additional converters or gateways may be needed.

---

The **Dwyer 643-1 33052501 differential pressure transmitter (0-30 psid)** is a **solid, mid-range choice** for applications requiring accurate and reliable low-to-moderate differential pressure measurement. It excels in **HVAC, filtration, and basic process control** where precision and durability are priorities. However, it is **not ideal for high-pressure systems, environments with extreme electrical noise, or applications needing advanced diagnostics or wireless connectivity**.

If your application fits within its specified range and environmental conditions, this transmitter offers **a cost-effective, low-maintenance solution**. For applications requiring broader ranges, higher precision, or advanced features, alternative models (e.g., Rosemount, Siemens, or other high-end brands) may be more suitable.

---

- You need a **reliable, accurate 0-30 psid measurement** for HVAC, filtration, or similar applications.

- Your system operates in **moderate environmental conditions** (not extreme temperatures or high vibration).

- You prioritize **simplicity, durability, and cost efficiency** over advanced features.

- You can **integrate it with existing 4-20 mA control systems** without additional converters.

- Your application requires **higher pressure ranges** (e.g., >50 psid).

- You need **wireless, digital, or advanced diagnostic capabilities**.

- Your environment has **extreme electrical noise, high vibration, or corrosive conditions** (a more rugged or specialized transmitter may be needed).

- You require **long-term warranty or global support** (larger brands may offer better service networks).

For most **standard industrial or commercial applications** within its range, this Dwyer transmitter is a **practical and dependable choice**. Always verify compatibility with your specific system before purchase.

Details:

Dwyer Instruments model 643-1 is an industrial, heavy-duty Wet/Wet Differential Pressure Transmitter. It features a rugged, cylindrical dual-sensor enclosure designed to continuously monitor differential pressure in process fluids, including compatible gases and liquids applied both reference sides. Product Status: Discontinued by Manufacturer Legacy Hardware. Product Series: Series 643 Differential Pressure Transmitter.

part #: 643133052501 prices

• $225.95-$449.99

specifications pressureswitchiz:

• brand: Dwyer
• part type: Pressure Instrument
• connection diameter: 1/4 In
• mounting position: Veritical Orienation
• maximum pressure: 250 Psi
• upc: 643133052501

seller pressureswitchiz:

• rating: 100.0%
• city: Archbold, Ohio
• # reviews: 69

general pressureswitchiz:

• Business Industrial > Hydraulics, Pneumatics, Pumps Plumbing > Air Pressure Gauges
• condition: New Open box

payments pressureswitchiz:

• wallet: Apple-pay
• other
• credit card: Discover

shipping pressureswitchiz:

• transit: 3-5 Days
• cost: $10.00
• service: UPS Ground Saver
• type: Calculated
• class: Economy
• carrier: UPS

returns pressureswitchiz:

• time: 30 Days
• method: Money back
• policy: Returns Accepted
• paid by: Seller

offer pressureswitchiz:

• sold: 0
• best offers: True
• started: May 17, 2026
• availability: In Stock
• options: Ship-to-home
• quantity: 1
